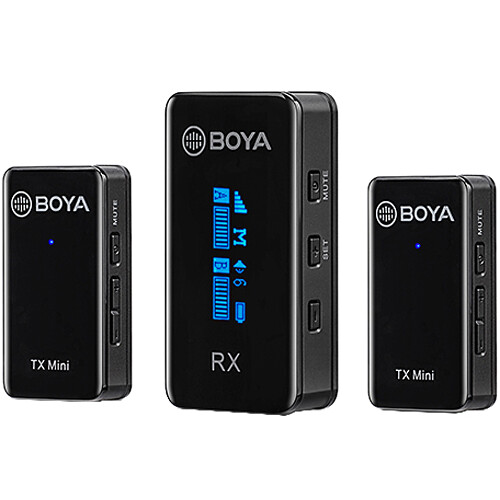

Boya Mic BY-XM6 -K2

Name: Boya Mic BY-XM6 -K2
Brand: Boya
SKU: BOYA-MIC-BYXM6-K2-710
Availability: OutOfStock

Original price was: ₹16,101.69.Current price is: ₹11,440.68.

Out of stock

Technical Specifications

Wireless Technology	Analog 2.4 GHz
Included Transmitters	2x Clip-On with Microphone
Diversity	Non-Diversity
Max Operating Range	328.1′ / 100 m (Line of Sight)
Receiver Type	Camera-Mount
Microphone Type	Built-In (Transmitter)
Polar Pattern	Omnidirectional

Receiver Type	Camera-Mount
Antenna	PIFA
Number of Audio Channels	2
Audio I/O	1x 1/8″ / 3.5 mm TRS Unbalanced Line Output 1x 1/8″ / 3.5 mm TRS Unbalanced Headphone Output
Audio Output Level	-60 to -20 dBV
Frequency Response	35 Hz to 18 kHz
Network I/O	No
USB/Lightning Connectivity	USB-C Female (Charging)
USB Class-Compliant	No, USB Charging/Power Only
Power Requirements	Battery
Battery Type	1x Built-In Rechargeable
Approx. Battery Life	7 Hours
DC Input Power	5 VDC
Display & Indicators	OLED
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	2.4 x 1.2 x 0.6″ / 62.1 x 31.6 x 16.5 mm
Weight	1.1 oz / 32 g

Transmitter

Transmitter Type	Clip-On with Microphone
RF Output Power	< 10 mW
Audio I/O	No
Muting	Mute Switch
Auto-Level Control	No
Frequency Response	35 Hz to 18 kHz
Sync Method	2.4 GHz QPSK
Antenna	PIFA
Power Requirements	Battery
Battery Type	1x Built-In Rechargeable
Approx. Battery Life	4.5 Hours
USB/Lightning I/O	USB-C (Charging)
Display & Indicators	LED
Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	-4 to 131°F / -20 to 55°C
Dimensions	1.8 x 0.9 x 0.6″ / 46 x 23.9 x 15 mm
Weight	0.5 oz / 14.5 g

Microphone

Microphone Type	Built-In (Transmitter)
Color	Black
Sound Field	Mono
Capsule	Condenser
Polar Pattern	Omnidirectional
Frequency Range	35 Hz to 18 kHz
SNR	77 dB
Maximum SPL	120 dB SPL
Sensitivity	-39 dB

In The Box

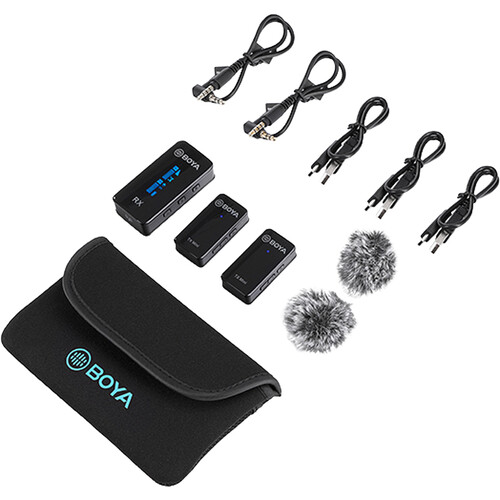

Packing List

BY-XM6 TX Transmitter×2

BY-XM6 RX Receiver×1

USB-C Charging Cable×3

Lavalier Microphone×2

Mic Clip for Lavalier Microphone×2

Foam Windscreen for Lavalier Microphone×2

Fur Windshield for Built-in Microphone×2

3.5mm TRS to TRS Output Cable for Cameras×1

3.5mm TRS to TRRS Output Cable for Smartphones×1

Charging Case×1

SKU: BOYA-MIC-BYXM6-K2-710 Categories: BOYA, Boya Microphone, MICROPHONE Brand: Boya

Guaranteed Safe Checkout

Description
Additional information

Main Features Of Boya Mic BY-XM6 -K2

For Content Creation, Mobile Journalism
2-Person Shoots with Camera or Phone
2 x Mini Transmitters with Built-In Mic
Dual-Channel Receiver
328′ Transmission Distance
USB-C Charging Ports, 3.5mm TRS Port
6 Levels of Gain Control, OLED Screen
Built-In Rechargeable Batteries

Featuring transmitters with an ultracompact form factor, the BOYA BY-XM6-S2 Mini Ultracompact 2-Person Wireless Microphone System is designed to capture audio in vlogs or interviews with two subjects using your compatible camera, smartphone, or other recording device. The system includes two mini clip-on transmitters with built-in omnidirectional microphones and a dual-channel receiver with a 3.5mm TRS connection. Using the built-in 2.4 GHz wireless frequency, the components can communicate from up to 328′ away without obstruction. An OLED screen on the receiver allows you to monitor battery life and signal strength while toggling recording modes and mute. The system also includes furry windscreens, 3.5mm TRS cable, 3.5mm TRS to TRRS cable, three USB-C charging cables, and a pouch to carry it all in.

Weight	0.5 kg
Technical Specifications	Wireless Technology Analog 2.4 GHz Included Transmitters 2x Clip-On with Microphone Diversity Non-Diversity Max Operating Range 328.1' / 100 m (Line of Sight) Receiver Type Camera-Mount Microphone Type Built-In (Transmitter) Polar Pattern Omnidirectional Receiver Type Camera-Mount Antenna PIFA Number of Audio Channels 2 Audio I/O 1x 1/8" / 3.5 mm TRS Unbalanced Line Output 1x 1/8" / 3.5 mm TRS Unbalanced Headphone Output Audio Output Level -60 to -20 dBV Frequency Response 35 Hz to 18 kHz Network I/O No USB/Lightning Connectivity USB-C Female (Charging) USB Class-Compliant No, USB Charging/Power Only Power Requirements Battery Battery Type 1x Built-In Rechargeable Approx. Battery Life 7 Hours DC Input Power 5 VDC Display & Indicators OLED Operating Temperature 14 to 122°F / -10 to 50°C Storage Temperature -4 to 131°F / -20 to 55°C Dimensions 2.4 x 1.2 x 0.6" / 62.1 x 31.6 x 16.5 mm Weight 1.1 oz / 32 g Transmitter Transmitter Type Clip-On with Microphone RF Output Power < 10 mW Audio I/O No Muting Mute Switch Auto-Level Control No Frequency Response 35 Hz to 18 kHz Sync Method 2.4 GHz QPSK Antenna PIFA Power Requirements Battery Battery Type 1x Built-In Rechargeable Approx. Battery Life 4.5 Hours USB/Lightning I/O USB-C (Charging) Display & Indicators LED Operating Temperature 14 to 122°F / -10 to 50°C Storage Temperature -4 to 131°F / -20 to 55°C Dimensions 1.8 x 0.9 x 0.6" / 46 x 23.9 x 15 mm Weight 0.5 oz / 14.5 g Microphone Microphone Type Built-In (Transmitter) Color Black Sound Field Mono Capsule Condenser Polar Pattern Omnidirectional Frequency Range 35 Hz to 18 kHz SNR 77 dB Maximum SPL 120 dB SPL Sensitivity -39 dB
In The Box	Packing List BY-XM6 TX Transmitter×2 BY-XM6 RX Receiver×1 USB-C Charging Cable×3 Lavalier Microphone×2 Mic Clip for Lavalier Microphone×2 Foam Windscreen for Lavalier Microphone×2 Fur Windshield for Built-in Microphone×2 3.5mm TRS to TRS Output Cable for Cameras×1 3.5mm TRS to TRRS Output Cable for Smartphones×1 Charging Case×1
